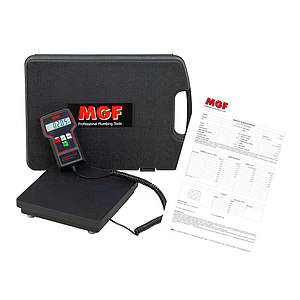

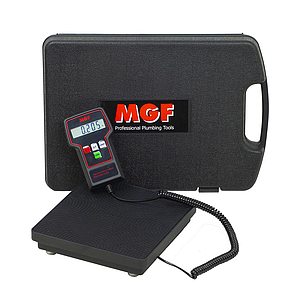

La bilancia digitale MAXI utilizza la tecnologia di misurazione del refrigerante più avanzata oggi disponibile ed è ideale per impianti HVAC e sistemi di refrigerazione.
Il peso può essere misurato in unità standard o metriche. L’unità è dotata di un allarme integrato che segnala quando la misura supera il limite impostato.
• Display LCD ad alta visibilità
• Tre opzioni di unità di misura (kg / oz / lbs)
• Retroilluminazione del display
• Spegnimento automatico dopo 10 minuti di inutilizzo; la retroilluminazione si spegne dopo 3 minuti di inutilizzo o uso continuato
• Design compatto, portatile e alimentato a batteria
• Indicazione “FULL” sul display quando il peso supera il range specificato

Specifiche tecniche
• Capacità: 220 lbs / 100 Kg
• Risoluzione: ±0,2 oz / 0,01 lbs / 5 g
• Intervallo di temperatura operativa: 32°F ÷ 122°F / 0°C ÷ 50°C
• Intervallo di temperatura di stoccaggio: +4°F ÷ 158°F / -20°C ÷ 70°C
• Precisione: ±0,5% della lettura
• Dimensioni piattaforma: 23 x 23 cm
• Peso totale unità: 3,3 Kg

Il prodotto è fornito di certificato di taratura

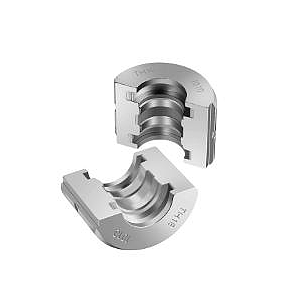

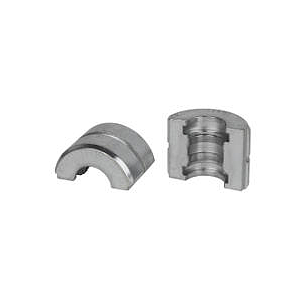

Insert for standard and MINI insert holder jaws, compatible with MGF and Klauke jaws.
Produced in steel worked with numerical control and tempered machines.
With centering seat for perfect pressing, it makes your jaw set light and cost saving.
MGF product.

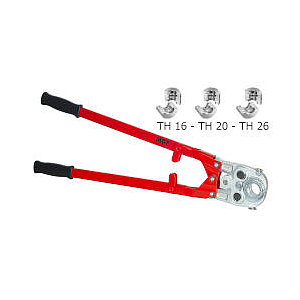

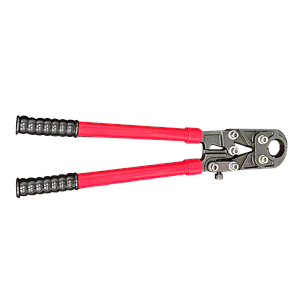

Manual Pressing Tool with Universal Jaw for Dies
Standard Equipment: Pressing Tool, Dies TH, mesures: 16, 20 e 26
Compatible with all MGF dies

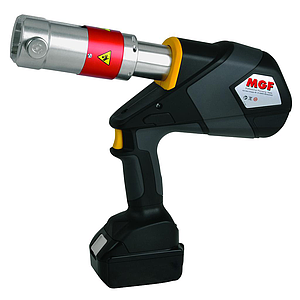

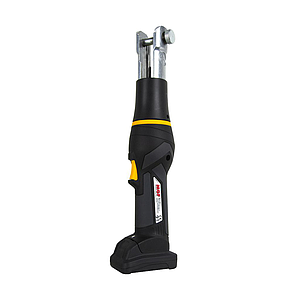

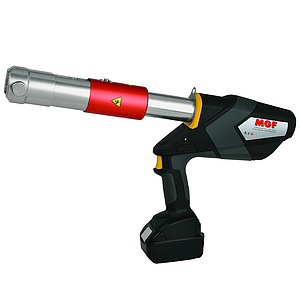

Battery-powered pressing tool 18V/3,0 Ah with constant thrust for system-related nominal sizes to 110 mm.
Thrust force Linear thrust of approx 32 kN - Jawholder Head approx. 350° rotating - Dimensions 366 x 81 x 317 mm.
Quick pressing due to short pressing cycle. Automatic piston return. Quickstop function. HPC pressure monitoring with audible signal.
(press tool only without battery and charger)

Insert for standard and MINI insert holder jaws, compatible with MGF and Klauke jaws.
Produced in steel worked with numerical control and tempered machines.
With centering seat for perfect pressing, it makes your jaw set light and cost saving.

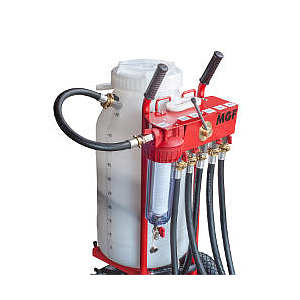

TORNADO & TSUNAMI is the best flushing system in the world. With black pipes included. Operating the valves only, without disconnecting pipes, you can perform all of the flushing tasks: Drain the system sludge, Mix chemicals, Effectively flush with the flow inverter, Self-clean the 9'' filter, Rinse pipes with the pump, Rinse pipes without the pump, Fill the system with water or chemicals, Purge air from the circuit.
Weight: 32,4 Kg - flow rate: 60 L/min - max pressure: 7 bar - tank capacity: 50 L - pipe fittings: 3/4''F - power supply: 230 V-50 Hz - current: 5,2 A - power: 750 W - sound pressure 70 dbA - protection rating: IP55.
Easy to handle and simple to use with CAD engineered frame with FEM method, pneumatic wheels, quick connectors and ergonomy, mixing calculations ruler and level indicator.

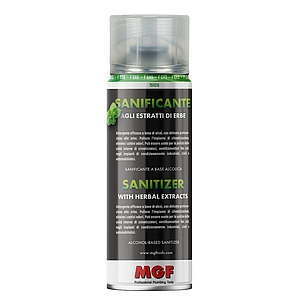

Cleaning and sanitizing with smooth tea tree fragrance. Cleans the air conditioners and eliminates bad odours. It can be used on domestic air conditioners, fan coils, HVAC systems, cars.
Spray can 500 ml

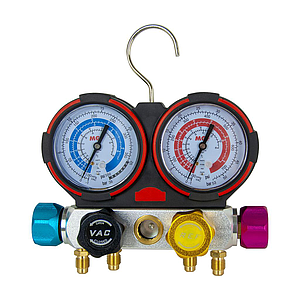

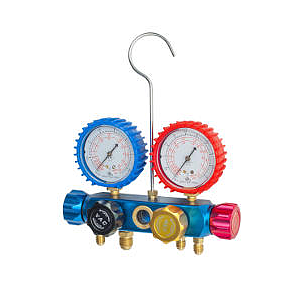

The 4-way manifold gauge set is designed to provide precision and reliability for servicing and charging refrigeration systems using R600, R290, R32, and R410A gases. The pulse-free gauges feature an adjustment screw, ergonomic handles, and wide spacing between connections, eliminating the need to replace diaphragms.

• The gas scale includes R600, R290, R32, and R410A
• 4x5/16’’ SAE connections
• The gauge has an 80 mm diameter, class 1.0 accuracy
• Anodized aluminum body, and reliable HNBR seals

The set is EN832 certified, ensuring safety and long-lasting performance.

The 4-way manifold gauge set is designed to provide precision and reliability for servicing and charging refrigeration systems using R22, R134a, R410A, and R407C gases. The pulse-free gauges feature an adjustment screw, ergonomic handles, and wide spacing between connections, eliminating the need to replace diaphragms.
• The gas scale includes R22, R134a, R410A, and R407C
• Connections of 3x1/4’’ and 1x3/8’’ SAE
• The gauge has an 80 mm diameter, class 1.0 accuracy
• anodized aluminum body, and reliable mechanical seals

The set is EN832 certified, ensuring safety and long-lasting performance.

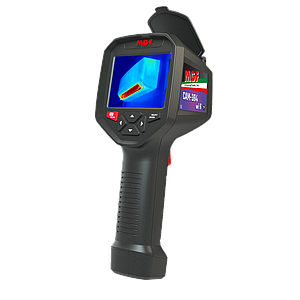

Infrared image resolution: 384 × 288
Minimum angle of view / focusing length: 28.4 ° × 21.4 ° / 0.19m
3.5 ″ full angle TFT display, 640x480 pixels
Visible image resolution: 300,000 pixels
Thermal sensitivity: 0.06
Temperature measurement range: -20 to 550 ° C (-4 ° F to 1022 ° F)
Measurement accuracy: ± 2% digital / ± 2 ° C
Emissivity: adjustable from 0.01 to 1.0
Frame rate of thermal images: 25Hz
Wavelength coverage: 8-14um
Focus mode: focal length adjustment
Color palette: rainbow, iron oxide red, cool color, black and white, black and white
Display option: integration of the thermal image with 25% step length and visible image.
Storage medium: integrated 3Gb (more than 20 thousand images stored)
WIFI connectivity
Power supply: built-in rechargeable battery
Auto shut-off time: selectable: 5 minutes / 20 minutes / does not shut off automatically
Dimensions: 97mm × 129mm × 256mm
Working temperature: from 0 to 45 ° C
Storage temperature: -20 to 60 ° C
Relative humidity: <85%

Insert for standard and MINI insert holder jaws, compatible with MGF and Klauke jaws.
Produced in steel worked with numerical control and tempered machines.
With centering seat for perfect pressing, it makes your jaw set light and cost saving.
MGF product.

Insert for standard and MINI insert holder jaws, compatible with MGF and Klauke jaws.
Produced in steel worked with numerical control and tempered machines.
With centering seat for perfect pressing, it makes your jaw set light and cost saving.
MGF product.

Insert for standard and MINI insert holder jaws, compatible with MGF and Klauke jaws.
Produced in steel worked with numerical control and tempered machines.
With centering seat for perfect pressing, it makes your jaw set light and cost saving.
MGF product.

La bilancia digitale MAXI utilizza la tecnologia di misurazione del refrigerante più avanzata oggi disponibile ed è ideale per impianti HVAC e sistemi di refrigerazione.
Il peso può essere misurato in unità standard o metriche. L’unità è dotata di un allarme integrato che segnala quando la misura supera il limite impostato.
• Display LCD ad alta visibilità
• Tre opzioni di unità di misura (kg / oz / lbs)
• Retroilluminazione del display
• Spegnimento automatico dopo 10 minuti di inutilizzo; la retroilluminazione si spegne dopo 3 minuti di inutilizzo o uso continuato
• Design compatto, portatile e alimentato a batteria
• Indicazione “FULL” sul display quando il peso supera il range specificato

Specifiche tecniche
• Capacità: 220 lbs / 100 Kg
• Risoluzione: ±0,2 oz / 0,01 lbs / 5 g
• Intervallo di temperatura operativa: 32°F ÷ 122°F / 0°C ÷ 50°C
• Intervallo di temperatura di stoccaggio: +4°F ÷ 158°F / -20°C ÷ 70°C
• Precisione: ±0,5% della lettura
• Dimensioni piattaforma: 23 x 23 cm
• Peso totale unità: 3,3 Kg

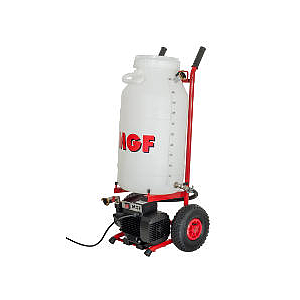

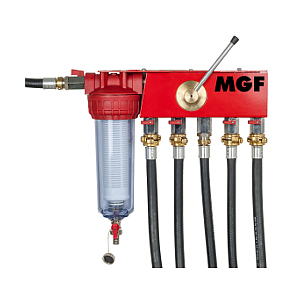

Additional Flushing Module for Solar and Tsunami models.
The turbulent motion of the cleaning liquid in the circuits exerts a mechanical action and accelerates the chemical reactions. To obtain the speed sufficient to generate fluid turbulence is thus fundamental a high flow rate, for a small installations suggest at least 40 L/min, preferable 60L/min or more. In the presence of dirt are created bottlenecks: for this it is important to reverse the flow and especially recommeneded pressure to counter the loss of pressure.

With TSUNAMI it is possible to:
Flush circuits through the mix of the chemical and the mechanical action of the pump
Load circuits with mixed chemicals or water thanks to the graduated container
Purge thanks to the turbulent motion induced inside the circuit
Pressurise up to 7 bar

Practical, reliable and easy to use for quick loading and flushing, even on large systems
Easy to fill and clean
The tank has a circular cross-section with reinforcements to ensure that it does not deform when filled with hot liquid
Ideal for use on construction sites or ladders thanks to pneumatic wheels
The TSUNAMI pump comes with a pair of 3 metre hoses, resistant to 10 bar and 80°C (H.T.) to ISO standard, a guarantee of quality

Weight: 30 Kg - dimensions: 1000 x 450 x 500 mm - max. flow rate: 60 L/min - max. pressure: 7 bar - tank capacity: 50 L - water connection: 3/4‘’ - power supply: 230 V-50 Hz - current: 5,2 A - power: 750 W - sound pressure 70 dbA - protection: IP55.
Manoeuvrable and easy to use, equipped with FEM-designed frame, pneumatic wheels, quick couplings and tidy control panel, mixing rule and level indicator.

The machine unlike the SOLAR SYSTEM does not have a non-return valve, filter and additional connections for pressure outlet/measurement and additional suction.

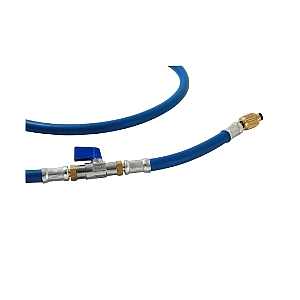

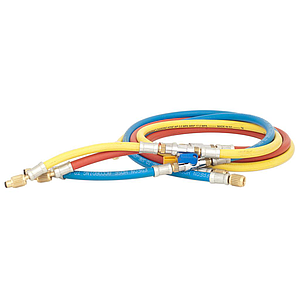

Charging Hose 5/16” SAE (R410 and R32)1500 mm with valve, knurled nut and core depressor
Service hose size: 5/16''-5/16'' - 45°
Low refrigerant permeability hose
Valves included to save refrigerants
0,1m hose between valve and connection makes easy operation even in small areas
Anticorrosive fitting
Qty: 1 pc
Color: blue
Length: 1500 mm

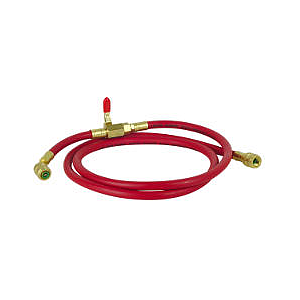

Charging Hose 5/16” SAE (R410 and R32)1500 mm with valve, knurled nut and core depressor
Service hose size: 5/16''-5/16'' - 45°
Low refrigerant permeability hose
Valves included to save refrigerants
0,1m hose between valve and connection makes easy operation even in small areas
Anticorrosive fitting
Qty: 1 pc
Color: red
Length: 1500 mm

Charging Hose 5/16” SAE (R410 and R32)1500 mm with valve, knurled nut and core depressor
Service hose size: 5/16''-5/16'' - 45°
Low refrigerant permeability hose
Valves included to save refrigerants
0,1m hose between valve and connection makes easy operation even in small areas
Anticorrosive fitting
Qty: 1 pc
Color: yellow
Length: 1500 mm
