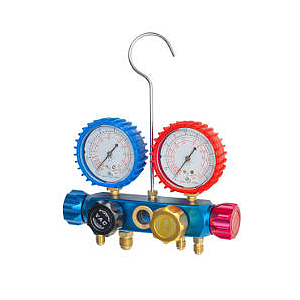

The 4-way manifold gauge set is designed to provide precision and reliability for servicing and charging refrigeration systems using R22, R134a, R410A, and R407C gases. The pulse-free gauges feature an adjustment screw, ergonomic handles, and wide spacing between connections, eliminating the need to replace diaphragms.
• The gas scale includes R22, R134a, R410A, and R407C
• Connections of 3x1/4’’ and 1x3/8’’ SAE
• The gauge has an 80 mm diameter, class 1.0 accuracy
• anodized aluminum body, and reliable mechanical seals

The set is EN832 certified, ensuring safety and long-lasting performance.

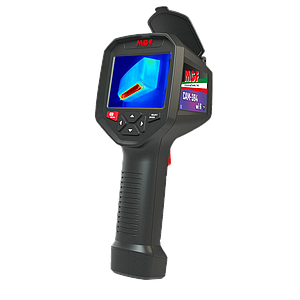

Infrared image resolution: 384 × 288
Minimum angle of view / focusing length: 28.4 ° × 21.4 ° / 0.19m
3.5 ″ full angle TFT display, 640x480 pixels
Visible image resolution: 300,000 pixels
Thermal sensitivity: 0.06
Temperature measurement range: -20 to 550 ° C (-4 ° F to 1022 ° F)
Measurement accuracy: ± 2% digital / ± 2 ° C
Emissivity: adjustable from 0.01 to 1.0
Frame rate of thermal images: 25Hz
Wavelength coverage: 8-14um
Focus mode: focal length adjustment
Color palette: rainbow, iron oxide red, cool color, black and white, black and white
Display option: integration of the thermal image with 25% step length and visible image.
Storage medium: integrated 3Gb (more than 20 thousand images stored)
WIFI connectivity
Power supply: built-in rechargeable battery
Auto shut-off time: selectable: 5 minutes / 20 minutes / does not shut off automatically
Dimensions: 97mm × 129mm × 256mm
Working temperature: from 0 to 45 ° C
Storage temperature: -20 to 60 ° C
Relative humidity: <85%

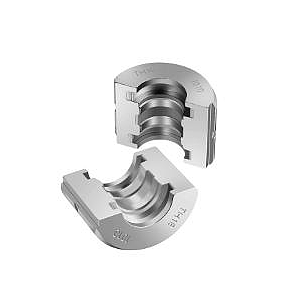

Insert for standard and MINI insert holder jaws, compatible with MGF and Klauke jaws.
Produced in steel worked with numerical control and tempered machines.
With centering seat for perfect pressing, it makes your jaw set light and cost saving.
MGF product.

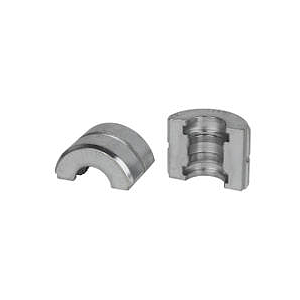

Insert for standard and MINI insert holder jaws, compatible with MGF and Klauke jaws.
Produced in steel worked with numerical control and tempered machines.
With centering seat for perfect pressing, it makes your jaw set light and cost saving.
MGF product.

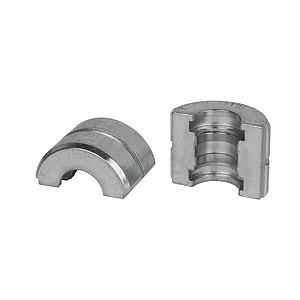

Insert for standard and MINI insert holder jaws, compatible with MGF and Klauke jaws.
Produced in steel worked with numerical control and tempered machines.
With centering seat for perfect pressing, it makes your jaw set light and cost saving.
MGF product.

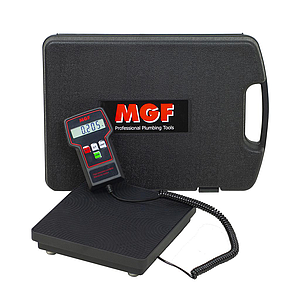

Digital refrigerant scale MAXI utilize the most technologically advanced refrigerant meter today and are ideal for HVAC and refrigeration
systems. The weight can be measured in standard or metric units. The units have a built in alarm to indicate the measurement has been exceeded.
• High-visibility LCD display.
• Three units of measure options (kg/oz/lbs)
• Backlight for the display.
• Automatic Shut-off after 10 minutes of non-use; backlight will shut off after 3 minutes of non-use or use.
• Compact, portable, battery operated design.
• "FULL”display when the weight exceeds the specified range.

Technical Specifications
• Capacity: 220 lbs / 100 Kg
• Resolution: ±0.2 oz / 0.01 lbs / 5g
• Operating temperature range: 32°F to 122°F / 0°C ~ 50°C
• Storage temperature range: +4°F to 158°F / -20°C ~ 70°C
• Accuracy: ±0,5% of reading
• Platform size: 23 x 23 cm
• Total unit weight: 3,3 Kg

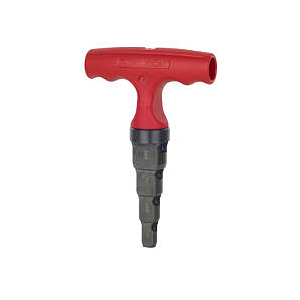

Deburrer Calibrator 16x2 - 20x2 - 26x3 - 32x3
Cutting edge made in special hardened steel, black finished with fiberglass handle.
Sizes are laser marked on the single steps.

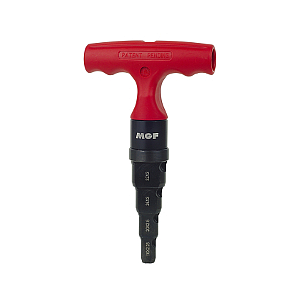

Ratchet Deburrer Calibrator 16x2 - 20x2 - 26x3 - 32x3
Cutting edge made in special hardened steel, black finished with fiberglass handle.
Sizes are laser marked on the single steps
Patented ratchet system

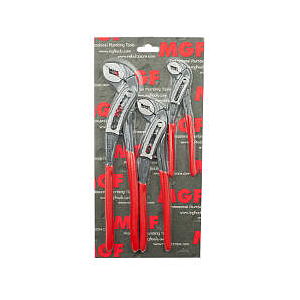

Kit Classic Waterpump Plier with Plastic Handle, lenght measures: 7'' / 175 mm, 10'' / 240 mm and 12'' / 300 mm supplied in hangable blister.
Compact jaws design of waterpump pliers excellent in narrow spaces, finger trap protection against squeezing, ergonomic handle in vinyl and produced in forged and oil-hardened chrome-vanadium steel.
Asymmetric double-toothed jaws, more gripping with less effort, comprehensively of nails and wire holder. 10 positions design, wide working range. Professional grade waterpump plier, Made in Germany.
Gripping performance 40% above ISO standards thanks to arch-shaped pitch adjustment.

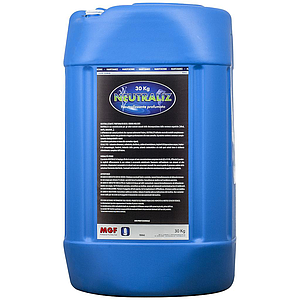

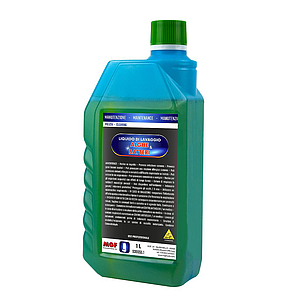

Chemical disinfectant for heating systems. Broad spectrum algaecide, bactericide, virucide, suitable for cooling and heating systems. Used for the removal of mucilage and algae in closed circuits such as solar panels.

Circulate at maximum flow rate with MGF Tools Gamma Solar or Gamma Tsunami pump, reversing the flow, for at least one hour. When finished, rinse until the water is clean. After washing with water, use the protective film liquid.

-Algaecide, bactericide, broad-spectrum virucide, suitable for cooling and heating systems
-Used for the removal of mucilage and algae in closed circuits such as radiant floors, geothermal, refrigeration with the aid of special
-1 l

Liquid state
Colourless
pH as is 3.2 ± 0.05
Boiling point > 100 °C
Relative density 1 ÷ 1.10 kg/lt
Solubility in water excellent and complete
Recommended dilution from 1% to 1.5%
Circulation time 30-60 minutes
Ph 3.2 ± 0.05
Made in Italy
Pack 12 pcs

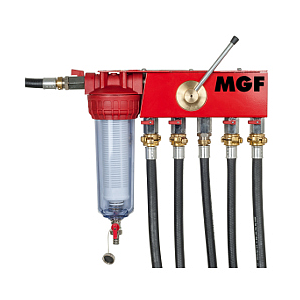

Additional Flushing Module for Solar and Tsunami models.
The turbulent motion of the cleaning liquid in the circuits exerts a mechanical action and accelerates the chemical reactions. To obtain the speed sufficient to generate fluid turbulence is thus fundamental a high flow rate, for a small installations suggest at least 40 L/min, preferable 60L/min or more. In the presence of dirt are created bottlenecks: for this it is important to reverse the flow and especially recommeneded pressure to counter the loss of pressure.

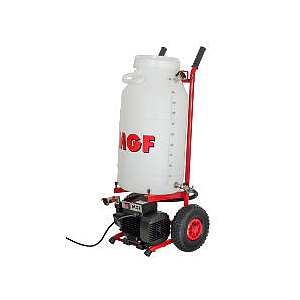

Multifunctional filling and washing system.
Weight: 30Kg - Dimensions: 1000 x 450 x 500 mm - max capacity: 95 L/min - max pressure: 9 bar - tank capacity: 50 L - water connection: 3/4'' - supply: 230 V-50 Hz - Current: 12 A - power: 1500 W - 70 dBA sound pressure - protection: IP55.
Handy and easy to use, with chassis designed with the FEM method pneumatic wheels, couplers and control panel ordered, rule of calculation for mixing and gauge.
The machine unlike SOLAR SYSTEM does not have non-return valve, filter and additional attacks per output / measurement pressure and additional suction.

With TSUNAMI it is possible to:
Flush circuits through the mix of the chemical and the mechanical action of the pump
Load circuits with mixed chemicals or water thanks to the graduated container
Purge thanks to the turbulent motion induced inside the circuit
Pressurise up to 7 bar

Practical, reliable and easy to use for quick loading and flushing, even on large systems
Easy to fill and clean
The tank has a circular cross-section with reinforcements to ensure that it does not deform when filled with hot liquid
Ideal for use on construction sites or ladders thanks to pneumatic wheels
The TSUNAMI pump comes with a pair of 3 metre hoses, resistant to 10 bar and 80°C (H.T.) to ISO standard, a guarantee of quality

Weight: 30 Kg - dimensions: 1000 x 450 x 500 mm - max. flow rate: 60 L/min - max. pressure: 7 bar - tank capacity: 50 L - water connection: 3/4‘’ - power supply: 230 V-50 Hz - current: 5,2 A - power: 750 W - sound pressure 70 dbA - protection: IP55.
Manoeuvrable and easy to use, equipped with FEM-designed frame, pneumatic wheels, quick couplings and tidy control panel, mixing rule and level indicator.

The machine unlike the SOLAR SYSTEM does not have a non-return valve, filter and additional connections for pressure outlet/measurement and additional suction.

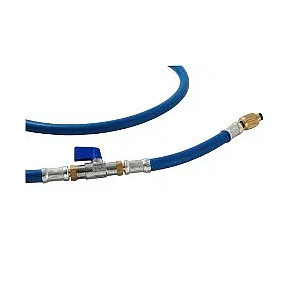

Charging Hose 5/16” SAE (R410 and R32)1500 mm with valve, knurled nut and core depressor
Service hose size: 5/16''-5/16'' - 45°
Low refrigerant permeability hose
Valves included to save refrigerants
0,1m hose between valve and connection makes easy operation even in small areas
Anticorrosive fitting
Qty: 1 pc
Color: blue
Length: 1500 mm

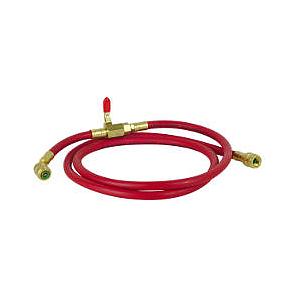

Charging Hose 5/16” SAE (R410 and R32)1500 mm with valve, knurled nut and core depressor
Service hose size: 5/16''-5/16'' - 45°
Low refrigerant permeability hose
Valves included to save refrigerants
0,1m hose between valve and connection makes easy operation even in small areas
Anticorrosive fitting
Qty: 1 pc
Color: red
Length: 1500 mm

Charging Hose 5/16” SAE (R410 and R32)1500 mm with valve, knurled nut and core depressor
Service hose size: 5/16''-5/16'' - 45°
Low refrigerant permeability hose
Valves included to save refrigerants
0,1m hose between valve and connection makes easy operation even in small areas
Anticorrosive fitting
Qty: 1 pc
Color: yellow
Length: 1500 mm

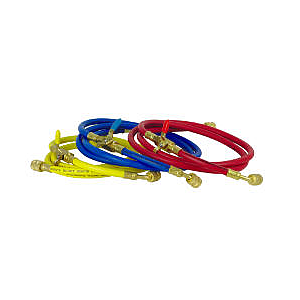

Charging Hoses 5/16” SAE (R410 and R32)1500 mm with valve, knurled nut and core depressor
Service hoses size: 5/16''-5/16'' - 45°
Low refrigerant permeability hoses
Valves included to save refrigerants
0,1m hose between valve and connection makes easy operation even in small areas
Anticorrosive fitting
Qty: 3 pcs
Color: yellow, red, blue
Length: 1500 mm

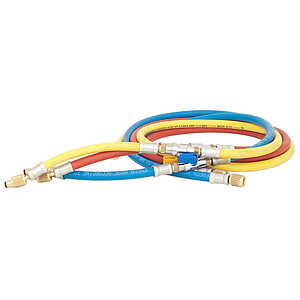

Charging Hoses 1/4”SAE (R422,R407,R134…) 1500 mm with valve, knurled nut and core depressor
Service hoses size: 1/4''-1/4'' - 45°
Low refrigerant permeability hoses
Valves included to save refrigerants
0,1m hose between valve and connection makes easy operation even in small areas
Anticorrosive fitting
Qty: 3 pcs
Color: yellow, red, blue
Length: 1500 mm

Charging Hose 1/4”SAE (R422,R407,R134…) 1500 mm with valve, knurled nut and core depressor
Service hose size: 1/4''-1/4'' - 45°
Low refrigerant permeability hose
Valves included to save refrigerants
0,1m hose between valve and connection makes easy operation even in small areas
Anticorrosive fitting
Qty: 1 pc
Color: blue
Length: 1500 mm

Charging Hose 1/4”SAE (R422,R407,R134…) 1500 mm with valve, knurled nut and core depressor
Service hose size: 1/4''-1/4'' - 45°
Low refrigerant permeability hose
Valves included to save refrigerants
0,1m hose between valve and connection makes easy operation even in small areas
Anticorrosive fitting
Qty: 1 pc
Color: red
Length: 1500 mm
