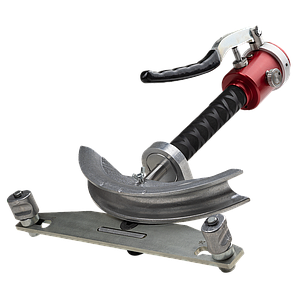

The EB26 Portable Hydraulic Bender is the ideal solution for professionals looking for a compact, powerful and versatile tool.

With a working range covering
- Multilayer (10-32 mm)
- Precision baked steel (10-18 mm)
- Undercoated carbon steel (12-18 mm)
- Press-fitting nickel stainless steel (12-22 mm)
- Coated fired copper (10-18 mm)
- Baked copper (10-22 mm)

The following dies are included in the case: 10-12-14-16-18-20-22-26
The EB32 is designed to meet a wide range of field requirements.

Thanks to its innovative system, it allows air to be vented and oil to be topped up without disassembly, making maintenance quick and easy. Its ultra-lightweight construction (only 1.50 kg) and ability to work in all positions offer unparalleled manoeuvrability, allowing it to operate in tight spaces or complex situations.

Versatility is at the heart of the EB26: in addition to the standard functions, interchangeable counters ensure complete customisation, further increasing the flexibility of the tool.

Translated with DeepL.com (free version)

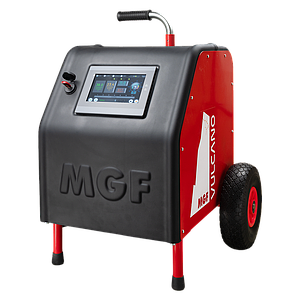

High-performance professional dryer, designed to ensure controlled, safe and certifiable drying of screeds in underfloor heating systems, reducing construction times and guaranteeing results that comply with regulations.
Features and benefits
-Dual power supply: three-phase: 10 kW – 400 VAC with neutral, single-phase: 3.3 kW or 6.7 kW – 230 VAC with optional adapter
-Frequency: 50–60 Hz
-Maximum operating pressure: 3.5 bar
-Maximum sensor pressure: 50 bar (resolution 10 mbar)
-Flow rate: 5 ÷ 40 L/min
-Head: 38 ÷ 5 m
-5 L expansion tank, pre-charged to 3.5 bar
-Operating temperature: 0 °C to 55 °C
-Components designed for intensive use on construction sites
-Robust and professional structure
-Weight: 25.8 kg
-Dimensions: 400 × 500 × 1100 mm
-Connection to manifold with 3/4" M valve
-2 x 2.5 m flexible hoses included with 3/4" F swivel connector
-Gardena or 1/2" F drain/fill connection
Integrated data recording system: Micro SD with 2 GB adapter for saving cycles

Ideal for transport and positioning in technical environments and construction sites
Perfect for providing technical documentation and certification to the end customer

Standard/Class: DIN 1707: L – SnAg5 (or equivalent).
Melting range (solidus/liquidus): 220–240 °C.
Mechanical properties: Rm ≈ 100 N/mm²; shear ≈ 35–45 N/mm².
Density: ≈ 7.3 kg/dm³.
RoHS, lead-free.
Ø 2.0 mm on reel.

Silver-plated brazing alloy – coated rods (Ag 45)
200g pack

‘Universal’ brazing alloy, rods with integrated deoxidising coating (flux coated), for capillary joints on copper/copper alloys and mixed joints.
Standard/Class: UNI EN ISO 17672: Ag 145 (formerly EN 1044: AG 104).
Melting range (solidus/liquidus): 640–680 °C.
Properties: Rm ≈ 480 N/mm²; shear ≈ 250 N/mm²; density ≈ 9.2 kg/dm³.
Format: rods Ø 1.5 mm.

Silver brazing alloy – coated rods (20% silver)

Brazing alloy, rods with integrated deoxidising coating, for joints on copper/copper alloys and mixed joint.
Standard/Class: EN 1044: AG 206.
Melting range (solidus/liquidus): 680–810 °C.
Mechanical properties: Rm ≈ 480 N/mm²; shear ≈ 260 N/mm².
Physical properties: resistivity ≈ 0.083 × 10⁻⁶ Ω·m; density ≈ 8.7 kg/dm³.

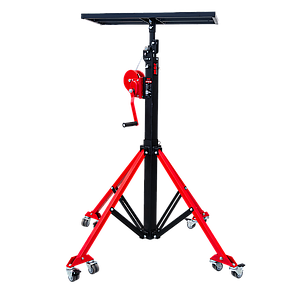

Advantages:
- Compact base and small footprint: working in reduced spaces
- Compact design: easy loading on van by one person
- Made in Europe, CE compliant
Technical Specifications:
Max Load: 125 Kg
Max height: 3,50m
Height (closed): 1,35m
Weight: 23,5 Kg
Working footprint: 1580mm

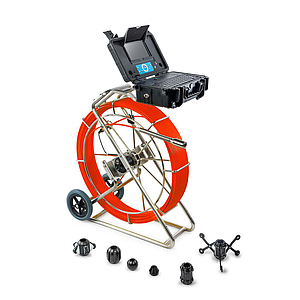

Professional video camera designed for the inspection of sewers, pipes, air ducts, underground cable tubes equipped with: 1/3 inch Sony CCD camera with 120° wide viewing angle; Camera head in stainless steel with IP68 waterproof level. Sapphire crystal lens cover, 12 adjustable high brightness white LEDs. The diameter of the camera is 23 mm. Equipped with two plastic guides Φ46mm and 80mm. The 7 "LCD monitor is in color. The SD card slot allows you to store still images or video and is equipped with a microphone for local audio recording. The power supply is rechargeable and lasts up to 6 hours.

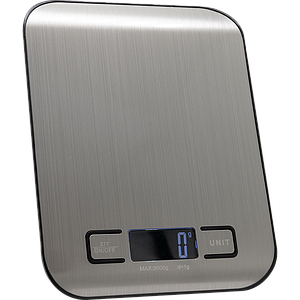

Excellent for charging and recovering refrigerant gases in HVAC systems, using cylinders with a maximum gross weight of 9,5Kg.
High precision strain gauge sensor
Max capacity :11 lbs / 10 Kg
Resolution: 1 g
Minimum weighing: 20 g
Unit: g/Kg/oz/LB’oz
Tare function
Touch-On/Off
Overload and Low power indication
Auto zero indication/Auto power off
Product Size 200 x 160 x h20 mm
Calibration certificate included

Excellent for charging and recovering refrigerant gases in HVAC systems, using cylinders with a maximum gross weight of 9.5Kg.
High precision strain gauge sensor
Max capacity :11 lbs / 10 Kg
Resolution: 1 g
Minimum weighing: 20 g
Unit: g/Kg/oz/LB’oz
Tare function
Touch-On/Off
Overload and Low power indication
Auto zero indication/Auto power off
Product Size 200 x 160 x h20 mm

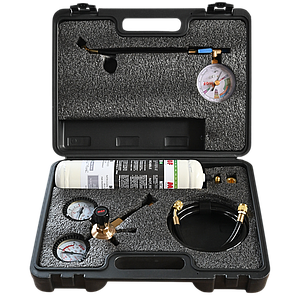

Indication of the best working pressure
Testing pointer
Also usable on thermohydraulic plants, thanks to the 1/8''Gas connection provided
Adjuster max pressure 300 bar
Max working pressure 53 bar
Testing manometer Ø 80 mm, category 1.0
Adapters provided 1/4'' SAE, 5/16'' SAE. 1/2'' Gas

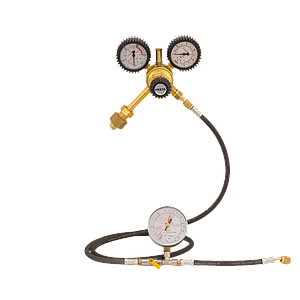

Max regulator pressure: 300 bar
Max working pressure: 53 bar
Test pressure gauge: Ø 80, class 1.0
Adapters supplied: 1/4'“ SAE, 5/16”' SAE, 1/2'' Gas
Can also be used on thermo-hydraulic systems
Removable hose with pressure gauge
Nitrogen regulator pressure gauge kit
Supplied in a case

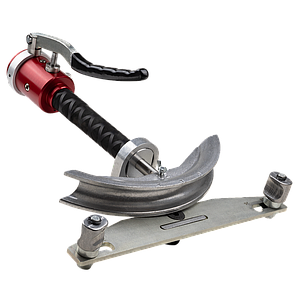

The Portable Hydraulic Tube Bender EB22P is the ideal solution for professionals seeking a compact, powerful, and versatile tool.

With a working range that includes:
• Multilayer pipes (3/8”–7/8”)
• Annealed precision steel (3/8”–3/4”)
• Coated carbon steel (3/8”–3/4”)
• Nickel stainless steel for press-fitting systems (3/8”–7/8”)
• Coated annealed copper (3/8”–3/4”)
• Annealed copper (3/8”–7/8”)

The supplied case includes the following bending dies: 3/8”–1/2”–5/8”–3/4”–7/8”
Also included is the counter-die tool with a working range of 12–22 mm.

The EB22P is designed to meet a wide range of on-site requirements. Thanks to its innovative system, it allows air to be vented and oil to be topped up without the need for disassembly, making maintenance quick and easy.

Its ultra-lightweight build (just 1.50 kg) and ability to operate in any position offer unmatched handling, allowing work in tight or complex spaces.

Versatility is at the heart of the EB22P: in addition to its standard functions, the interchangeable counter-dies ensure complete customization, further enhancing the tool’s flexibility.

The EB32 Portable Hydraulic Bender is the ideal solution for professionals looking for a compact, powerful and versatile tool.

With a working range covering
- Multilayer (10-32 mm)
- Precision baked steel (10-18 mm)
- Undercoated carbon steel (12-18 mm)
- Press-fitting nickel stainless steel (12-22 mm)
- Coated fired copper (10-18 mm)
- Baked copper (10-22 mm)

The following dies are included in the case: 10-12-14-16-18-20-22-26-32
The EB32 is designed to meet a wide range of field requirements.

Thanks to its innovative system, it allows air to be vented and oil to be topped up without disassembly, making maintenance quick and easy. Its ultra-lightweight construction (only 1.50 kg) and ability to work in all positions offer unparalleled manoeuvrability, allowing it to operate in tight spaces or complex situations.

Versatility is at the heart of the EB32: in addition to the standard functions, interchangeable counters ensure complete customisation, further increasing the flexibility of the tool.

Translated with DeepL.com (free version)

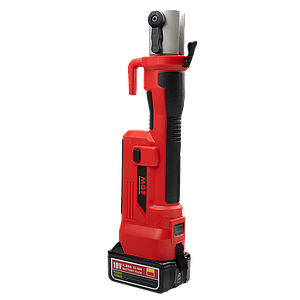

Main features:
• Pressing force: 19 kN
• Maximum diameters: 40 mm (plastic/multilayer), 35 mm (copper/aluminium/stainless steel)
• Weight: 2.3 kg (without battery) – 2.9 kg (with battery)
• Piston stroke: 31.5 mm
• OLED display for diagnostics and monitoring
• High-performance brushless motor
• 360° rotating head
• Protection rating: IP20 - IPXO
• Warranty: 3 years

Product advantages:
- Super balanced: optimal design to prevent wrist fatigue
- Your purchase is worth more: 2 x 18V 4.0 Ah batteries + Makita compatible charger
- Non-stop work: up to 350 presses on a single charge
- Rotating head: for pressing in all positions
- OLED display and brushless motor: top of the range and low maintenance
- Fast and efficient technical support: at the MGF factory in Parma

Standard equipment:
✓ 191B 19kN press
✓ 2 x 18V 4.0 Ah batteries
✓ 1 universal charger (100-230V)
✓ Carrying belt

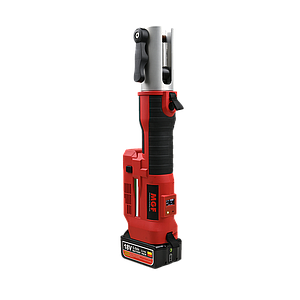

Main features:
• Pressing force: 32 kN
• Max diameters: 108 mm (plastic/multilayer), 54 mm (copper/aluminum/stainless steel)
• Weight: 3.7 kg (without battery) – 4.2 kg (with battery)
• Piston stroke: 40 mm
• OLED display for diagnostics and monitoring
• High-performance brushless motor
• 360° rotating head
• Protection rating: IP20 - IPXO
• Warranty: 1 year

Product advantages:
- Super balanced: optimal design to prevent wrist fatigue
- Your purchase is worth more: 2 x 18V 5.0 Ah batteries + Makita compatible charger
- Non-stop work: up to 350 presses on a single charge
- Rotating head: for pressing in all positions
- OLED display and brushless motor: advanced technology, top of the range, low maintenance
- Fast and efficient technical assistance: at the MGF factory in Parma

Standard equipment:
✓ 32 kN press tool
✓ 2 x 18V 5.0 Ah batteries
✓ 1 universal charger (100-240V)
✓ Carrying belt
✓ Professional case

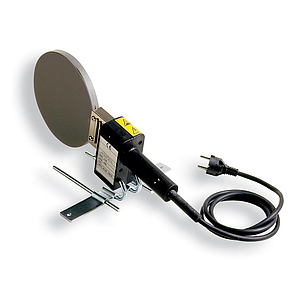

Thermoplate suitable for butt welding of pipes and fittings made of PP-PE and other thermoplastics supplied with floor stand.
Material to be welded: PP, PE and thermoplastics
Diameter of thermoelement: 120 mm
Thermoelement inclination: 35°.
Possibility of temperature regulation
Voltage: 230V - 50/60Hz
Temperature: 200°C pre-calibrated for PE
Weight: 1.8 kg
Dimensions: 340 x 100 x 110 mm
Power: 900 W
Quality Teflon-coated heating element.

Thermoplate suitable for butt welding of pipes and fittings made of PP-PE and other thermoplastics supplied with floor stand.
Material to be welded: PP, PE and thermoplastics
Thermoelement diameter: 280 mm
Possibility of temperature regulation
Voltage: 230V - 50/60Hz
Temperature: 200°C pre-set for PE
Weight: 4.1 kg
Dimensions: 550 x 60 x 280 mm
Power: 1400 W
Quality Teflon-coated heating element.

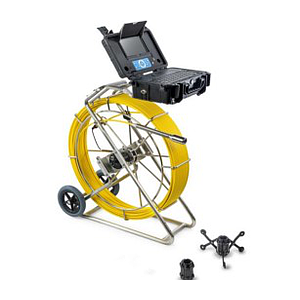

Camera Head
* Camera: Φ38mm×81mm (total: 318mm), AISI304
* Sensor: 1/3" CMOS, 752x582 px
* View Angle: 120°
* Transmitter: 512hz built-in(optional)
* Self leveling: Built-in
* Depth-of-Field: 120cm(approx), focus distance: 12cm (approx)
* Front Lens: Sapphire glass
* Water-Proof: IP68
* Lighting: Built-in 12×LED(White)
* Operating Temperature: -10~50℃/+14~+122℉
* Storage Temperature: -20~60℃/+4~+140℉

Cable Wheel
* 60m fiberglass push rod cable with on-screen distance counter
* Dia. of push cable: 9mm

LCD Monitor
* Screen: 7-inch 16:9 Super bright HD color LCD screen, 1024×600 pixels
* Mirror and Flip: support image mirror, and flip
* Video Resolution: CVBS D1, Video Encoding: H.264
* Photograph: 1920×1080
* Audio Recording: Support Local Sound
* Output: TV and Audio output
* External memory: support SD memory card up to 64GB
* LED Driver: Built-in dimmer
* Play back: Video,Photo and Audio
* On-screen: date and time, meter/ft. distance display
* Battery Capacity: 7.4V 5200mAh Li-ion Battery, Life/Charge time: 5/8 hours
* Power Supply: DC 12V input

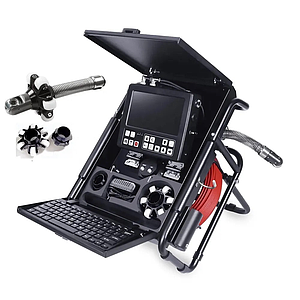

- 360° rotation camera head: pan 360° + tilt 180°
- 1/3 CMOS, 2.0MPX FHD , waterproof IP68 head camera
- Head with built-in 512HZ transmitter
- 8" IPS lcd screen, 1920X1080 resolution
- DVR control box with audio ,video recording and photography function
- 40m diam. 7mm soft fiberglass cable
- USB wireless keyboard to write notes
- Camera video resolution: 1080P
- Built in 7000mA li-ion battery inside
- Digital meter counter function, error < 1%
- Manual focus adjust
- All-in-One Design, easy to carry
