Manual Pressing Tool with Universal Jaw for Dies
Standard Equipment: Pressing Tool, Dies TH, mesures: 16, 20 e 26
Compatible with all MGF dies

Ideal for testing and pressurization of hydraulic circuits. It can pump water and non-acid liquids, ex. antifreezing fluids. Provided with a high-pressure pipe for the connection to the plant.
Weight: 7,7 Kg - Dimensions 500 x 190 x 280 mm
Tank: 12 L varnished
Presure: 60 bar
Flow: 22 cc/cycle
Seal: NBR
High-pressure pipe: 1500 mm - 1/2'' F / 1/2'' F

Provided: Plugs Ø65, 100, 170 and spiral
Weight: 8 kg
Dimensions: 260 x 120 x 570 mm
Max flow: 125 cc/ciclo
Tank: 3,1 L
It unclogs drains from Ø 21 to Ø 170 mm.
Manometer made in accordance with EN 837 regulations
It can be used for tests up to 8 bar
Suitable for tyre inflation.

Friction limit switch system.
Eccentric cone ground.
Locking screws.
Suppliend in blister.
Sizes: 1/4", 5/16", 3/8", 1/2", 5/8" e 3/4"
Weight: 1,68 Kg

Simple to use: a single knob for all operations
Refrigerants: R12, R134a, R401, R406, R500, R22, R401, R402, R407D, R408, R409, R411, R412, R502, R509, R402, R404, R407B, R410A, R507, R32 and R1234yf
Final vacuum : 500mbar (15'' Hg)
Voltage: 230VAC 50Hz
Motor: 1HP (750W) twin-cylinder
Max current draw: 5A
Recovery rate: 9,50Kg/min (push/pull)
Internal pressure protector: the system will shut-off automatically at 38.5 bars

Simple to use: a single knob for all operations
Refrigerants: R12, R134a, R401, R406, R500, R22, R401, R402, R407D, R408, R409, R411, R412, R502, R509, R402, R404, R407B, R410A, R507, R32 and R1234yf
Vuoto finale: 500mbar (15'' Hg)
Voltage: 230VAC 50Hz
Motor: 3/4HP (560W) single cylinder
Max current draw: 4A
Recovery rate: 6,3Kg/min (push/pull)
Internal pressure protector: the system will shut-off automatically at 38.5 bars

Digital refrigerant scale MAXI utilize the most technologically advanced refrigerant meter today and are ideal for HVAC and refrigeration
systems. The weight can be measured in standard or metric units. The units have a built in alarm to indicate the measurement has been exceeded.
High-visibility LCD display.
Three units of measure options (kg/oz/lbs)
Backlight for the display.
Automatic Shut-off after 10 minutes of non-use; backlight will shut off after 3 minutes of non-use or use.
Compact, portable, battery operated design.
"FULL”display when the weight exceeds the specified range.

Technical S pecifications
Capacity: 220 lbs / 100 Kg
Resolution: ±0.2 oz / 0.01 lbs / 5g
Operating temperature range: 32°F to 122°F / 0°C ~ 50°C
Storage temperature range: +4°F to 158°F / -20°C ~ 70°C
Accuracy: ±0,5% of reading
Platform size: 23 x 23 cm
Total unit weight: 3,3 Kg

This Programmable Refrigerant Scale SMART allows quick, efficient and automatic charging/recovery of refrigerant from air conditioning or refrigerant systems. The unit is portable and has a weight capacity of up to 220 lbs or 100 kg. It includes 1/4” male flare and 1/2’’ ACME fittings to allow connection to all standard charging manifolds and refrigerant cylinders.
High visibility LCD display.
Three units of measure options (kg/oz/lbs)
Backlight for the display.
Automatic Shut-off after 10 minutes of non-use; backlight will shut off after 3 minutes of non-use or use
Memory feature allows storage of up to 100 charge/ recovery programs.
Compact, portable and battery-powered design (included)
Fail safe feature: Unit is designed with a fail safe feature that will close the valve in the event of lost power due to low battery voltage or if the unit is inadvertently turned off.
“FULL”display when the weight exceeds the specified range.

Technical Specifications
Capacity: 220 lbs / 100 Kg
Resolution: ±0.2 oz / 0.01 lbs / 5g
Operating temperature range: 32°F to 122°F / 0°C ~ 50°C
Storage temperature range: +4°F to 158°F / -20°C ~ 70°C
Accuracy: ±0,5% of reading
Platform size: 23 x 23 cm
Total unit weight: 3,6 Kg

Gas leak detector that adopts LSI technique and meets international smart technology standards. It detects gas leakage with high sensitivity and strong adaptive ability. Being waterproof, dustproof, explosion-proof, and easy to use with high reliability, the detector is widely used in oil, coal, municipal construction, chemical engineering, environmental protection, metallurgy, refining, gas transmission and distribution, biochemistry, agriculture, pharmaceutical industries.
Detected gases: Methane, natural gas, coal gas, ethane, propane, buthane, n-buthane, isobuthane..., alchools (methanol, ethanol, propanol), ethers, kethones (butanone, acethone), hydrogen and other compounds (gasoline), aviation fuel, kerosene, mixture of nitrogen and hydrogen (azohydro), R32, R290 ...
Power Supply: Li-Ion Batteries (batteries and battery charger included) and battery life 6-8 h
Dimensions: 210 x 66 x 30 mm - Weight 0,30 Kg
Pre Heating Time 60s
Working condition Temperature: -10～40 ℃
Sensibility 0-10000 ppm
LCD display for professional leak detection e alarm setting
Storage condition Temperature: -20～50 ℃

Max diameter: 4 "
Equipped with a compact handle to exercise a secure grip on the tube.
Rubberized tape for maximum grip and minimum failures even in cold and humid environments
Innovative locking system for applications allows you to quickly adjust the size
Provides maximum leverage in confined spaces and can be used in pairs for complex installations

Max diameter: 6"
Equipped with a compact handle to exercise a secure grip on the tube.
Rubberized tape for maximum grip and minimum failures even in cold and humid environments
Innovative locking system for applications allows you to quickly adjust the size
Provides maximum leverage in confined spaces and can be used in pairs for complex installations

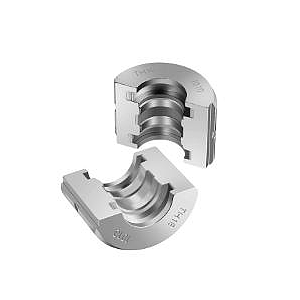

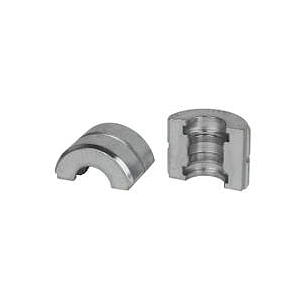

Insert for standard and MINI insert holder jaws, compatible with MGF and Klauke jaws.
Produced in steel worked with numerical control and tempered machines.
With centering seat for perfect pressing, it makes your jaw set light and cost saving.

Insert for standard and MINI insert holder jaws, compatible with MGF and Klauke jaws.
Produced in steel worked with numerical control and tempered machines.
With centering seat for perfect pressing, it makes your jaw set light and cost saving.
MGF product.

Insert for standard and MINI insert holder jaws, compatible with MGF and Klauke jaws.
Produced in steel worked with numerical control and tempered machines.
With centering seat for perfect pressing, it makes your jaw set light and cost saving.
MGF product

Insert for standard and MINI insert holder jaws, compatible with MGF and Klauke jaws.
Produced in steel worked with numerical control and tempered machines.
With centering seat for perfect pressing, it makes your jaw set light and cost saving.
MGF product.

Insert for standard and MINI insert holder jaws, compatible with MGF and Klauke jaws.
Produced in steel worked with numerical control and tempered machines.
With centering seat for perfect pressing, it makes your jaw set light and cost saving.
MGF product.

Insert for standard and MINI insert holder jaws, compatible with MGF and Klauke jaws.
Produced in steel worked with numerical control and tempered machines.
With centering seat for perfect pressing, it makes your jaw set light and cost saving.
MGF product

Insert for standard and MINI insert holder jaws, compatible with MGF and Klauke jaws.
Produced in steel worked with numerical control and tempered machines.
With centering seat for perfect pressing, it makes your jaw set light and cost saving.
MGF product.

Insert for standard and MINI insert holder jaws, compatible with MGF and Klauke jaws.
Produced in steel worked with numerical control and tempered machines.
With centering seat for perfect pressing, it makes your jaw set light and cost saving.

Additional Flushing Module for Solar and Tsunami models.
The turbulent motion of the cleaning liquid in the circuits exerts a mechanical action and accelerates the chemical reactions. To obtain the speed sufficient to generate fluid turbulence is thus fundamental a high flow rate, for a small installations suggest at least 40 L/min, preferable 60L/min or more. In the presence of dirt are created bottlenecks: for this it is important to reverse the flow and especially recommeneded pressure to counter the loss of pressure.
